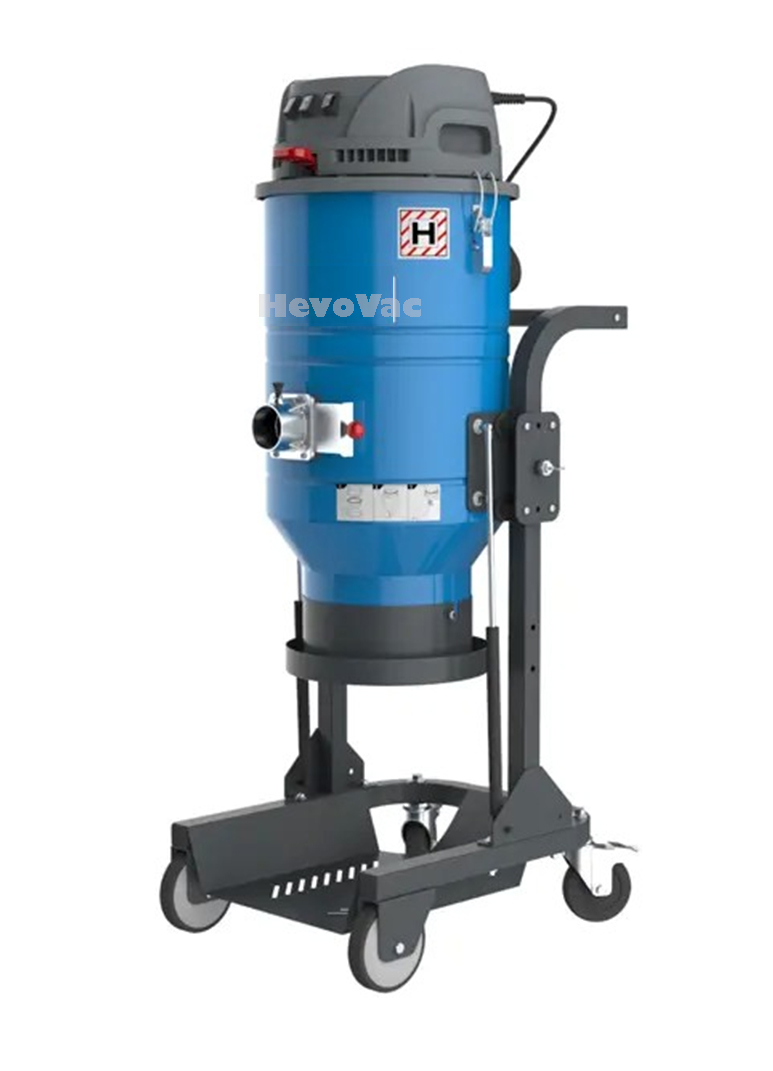

HevoVac T 3S
The HevoVac T 3S is a robust, industrial dry vacuum cleaner that has been specially developed for the extraction of hazardous fine dust during grinding work, construction applications and in workshops.
It works with up to three separately switchable Ametek motors (1.2 kW each) and generates a high suction power of up to 600 m³/h with a water lift of 240 mBar.
Convenience & safety
An integrated jet-pulse system enables effective cleaning of the filter without manual intervention.
Dust disposal is dust-free via a Longopac system, which ensures safe handling even in sensitive areas such as renovation work with hazardous substances.
Compact and mobile
Depending on the model, the HevoVac weighs between 30 and 80 kg. Despite its weight, the vacuum cleaner is easy to move thanks to its sturdy industrial castors and well-designed chassis. The compact design enables flexible and easy transport on construction sites, in workshops or in industrial applications - even over uneven terrain.
It works with up to three separately switchable Ametek motors (1.2 kW each) and generates a high suction power of up to 600 m³/h with a water lift of 240 mBar.
Convenience & safety
An integrated jet-pulse system enables effective cleaning of the filter without manual intervention.
Dust disposal is dust-free via a Longopac system, which ensures safe handling even in sensitive areas such as renovation work with hazardous substances.
Compact and mobile
Depending on the model, the HevoVac weighs between 30 and 80 kg. Despite its weight, the vacuum cleaner is easy to move thanks to its sturdy industrial castors and well-designed chassis. The compact design enables flexible and easy transport on construction sites, in workshops or in industrial applications - even over uneven terrain.
| Type | HevoVac T 3S |
| Rating voltage（V） | 230 |
| Rating frequency（Hz） | 50 |
| Rating input power（W) | 3600 |
| Rated input current (A) | 14.4 |
| Negative pressure (mbar) | 240 |
| Airflow max. (m³/h) | 600 |
| Vacuum cleaner connection (mm) | 50 |
| Filter area (cm²) | 30000 |
| Weight (kg) | 55 |
| Noise level (dB(A)) | 80 |
| Protection class | IP54 |
| Filter cleaning | Jet pulse |
| Dimensions (mm) | 660 x 675 x 1220 |

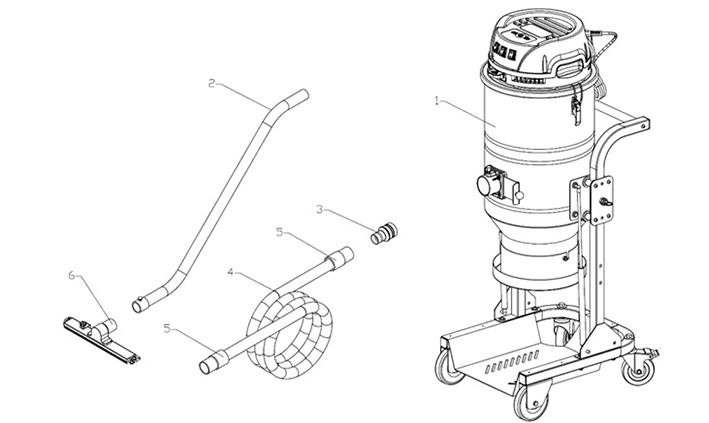

| Nr. | Code | Description | Qty. | Unit |
| 1 | VAC.T3S.000.00 | HevoVac T 3S | 1 | Piece |
| 2 | VAC.703.000.10 | S-pipe 50 mm | 1 | Piece |
| 3 | VAC.703.000.02 | Reducer 70 to 50 mm | 1 | Piece |
| 4 | VAC.703.000.11 | EVA hose 50 mm | 7,5 | Meter |
| 5 | VAC.703.000.12 | Suction connection 50 mm | 2 | Piece |
| 6 | VAC.703.000.13 | Dry suction nozzle 50 mm - 450 mm breit | 1 | Piece |
| 7 | VAC.TOP.060.20 | LongoPac 4 x 20 m | 1 | Stück |
