Only for dry vacuum cleaners.
Air-Vaccum motor i.e.intake air that is the cooling air at the same time, only suitable for vacuum cleaners, TP = Thermal Protector cuts off by overheating.

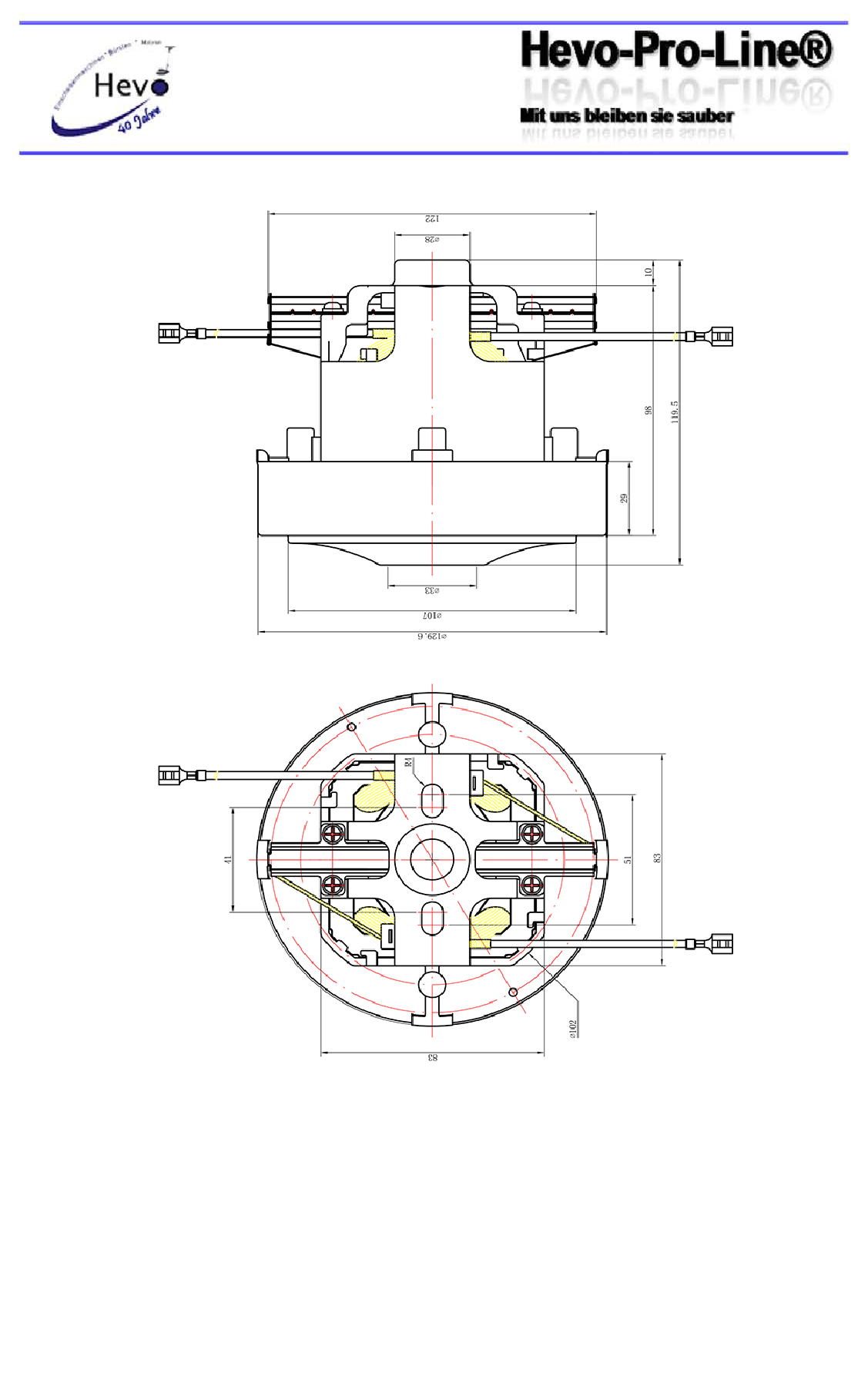

Overall height 119,5 mm, height 40 mm turbine incl. buckle, turbine diameter 129,6 mm.
Important information about the product
This motor has a different construction design compared to the motors with this part number that we normally offer.
This difference is the result of a production error. However, the motor is still fully functional and fulfills its performance requirements as usual.
We recommend checking whether the different design is compatible with your vacuum cleaner before ordering.
Due to the faulty production, we are offering this motor at a reduced price. Please note that this engine is therefore excluded from exchange and return and is only for sale to commercial customers.
Thank you for your understanding.
| Motor Type | SMO.119 455-FS |
| Rating Voltage（V） | 230 |
| Rating Frequency（Hz） | 50 |
| Rating Input Power（W） | 1200 |
| Maximal Airflow（M³/min） | 3.5 |
| Maximal Suction（Kpa） | 28 |
| Maximal Air Power（W) | 460 |
| Maximal Efficiency（%） | 35% |
| Noise（M）（dBA） | ≤95 |
| Insulation Class | B |
| Lifespan | >500 |
